Journal

Progress

• Blender 5.2.2 LTS (commit d13f752e3b9c), installed from the portable archive
• check.sh: each lesson’s bpy script run with --background --factory-startup, its report compared with expected/
• CI on Ubuntu, Windows and macOS, with Cycles on the CPU
• Lesson 1: the interface, and the .blend file as a database
• Lesson 2: polygonal modeling and modifiers
• Lesson 3: materials, UVs, and what glTF keeps of them
• Lesson 4: lights, cameras, and rendering with EEVEE and Cycles
• French and Spanish translations
• A cleanup pipeline for .glb models generated in ComfyUI, tried on two Hunyuan3D models
• Two procedural models in bpy, compared with the generated ones
• Four figures for a game engine’s crowd, their walk carried in the UVs
• Lesson 5: scripting with bpy

QA

Blender 5.2.2 is somebody else’s software, so unlike the analyser courses this table is about a product the course only uses. Each row was found while writing a lesson and is reproduced against the pinned build. None of it has been reported upstream; the last column says so rather than leaving it to be assumed.

Expected	What happens	Where	Measure	Status
winget offers the current LTS the day it ships	winget still offered 5.2.1 on the day 5.2.2 was released	winget package repository	5.2.1 against 5.2.2, released 15 September 2026	Reproduced, not reported 2026-09-16
projects.blender.org can be read with curl	Its pages answer 403. Its API does not, and served the files at the pinned commit	projects.blender.org	403 on the pages, 200 on /api/v1/repos/blender/blender/raw/<path>?ref=<sha>	Reproduced, worked around by using the API 2026-09-16
Image.pixels on an 8-bit sRGB image converts what it is given to the image’s colorspace	It stores the values as bytes, unconverted	bpy.types.Image.pixels, 5.2.2	The generated rosewood came out far too dark: the script had converted to linear first, so the conversion happened twice	Reproduced, root cause in the course’s script, behaviour undocumented 2026-09-16
The glTF exporter says in its log when it drops a node setup it cannot express	It drops a Noise Texture wired to Roughness silently	io_scene_gltf2, 5.2.2	glTF’s default roughness of 1 in the exported file, no message in the log	Reproduced, not reported 2026-09-16
The glTF exporter applies modifiers	It skips them unless export_apply is set	io_scene_gltf2, 5.2.2	Exported mesh without its modifiers	Reproduced, not reported 2026-09-16
export_format="GLTF_EMBEDDED" works, as the manual documents it	It is refused unless a preference of the add-on enables it	io_scene_gltf2, 5.2.2	Export refused with the format the manual lists	Reproduced, manual and build disagree 2026-09-16
The enum of RenderSettings.engine read from the class lists every value that can be set	It lists BLENDER_EEVEE alone, while setting BLENDER_WORKBENCH or CYCLES works	bpy.types.RenderSettings.engine, 5.2.2	One value enumerated, three accepted	Reproduced, not reported 2026-09-16
Material.use_nodes reads normally until its announced removal in 6.0	Reading it already prints a DeprecationWarning in 5.2	bpy.types.Material.use_nodes, 5.2.2	Warning on read, two major versions before removal	Reproduced, deliberate on Blender’s part 2026-09-16
A saved .blend holds what the outliner’s Blender File view shows	Saving skips data-blocks with no users, so a material made and not yet assigned is gone after a save and reopen	bpy.data, saving — lesson 1	orphans_purge: {'FINISHED'} meshes left [('Cube', 2), ('Kept', 1)]; the orphan was never written	By design: a reference-count collector, not a reachability one. Lesson 1 shows it
The same script gives a byte-identical .blend on every OS	The sizes differ by a few bytes	The .blend writer, 5.2.2	96,061 bytes on the author’s machine and the Linux runner, 96,053 on Windows, 96,055 on macOS	Reproduced, cause not looked for; check.sh does not compare the size 2026-09-16

Experiments

Each row is a question the course measured. The hypothesis is the one recorded before the measurement; where none was recorded, the row says so rather than inventing one after the fact. A refuted hypothesis is a result and stays here.

Question	Hypothesis	Result	Verdict	Where
Does the same bpy script give the same report on Windows, Linux and macOS?	Not written in advance: check.sh printed the render hash without comparing it, precisely because nobody knew whether it would match.	The reports are identical on the three runners, the voxel remesh included, and the hash of the 16-sample render matches on x86-64 and on Apple Silicon.	Confirmed	2026-09-16 · check.sh
Does a model generated from an image carry its lighting painted into the texture?	Written in advance: yes, and it was the failure the pipeline was built to show.	This workflow outputs shape only: no UV map, no texture, one empty material. The expected failure could not happen.	Refuted	2026-09-17 · glb_pipeline.py
Does Decimate in Collapse mode reach a 20,000-triangle target on a surface-net mesh?	Not written in advance: the pipeline asked for a ratio and printed only the ratio it had asked for, which is that assumption made visible.	43,302 triangles on the metronome and 317,253 on the gramophone: missed on both, because of 19,084 and 189,748 non-manifold edges.	Refuted	2026-09-17 · glb_pipeline.py
Does a voxel remesh first give a mesh Decimate can bring to target?	Not written in advance: the remesh was added in answer to the row above, with the loss of detail below one voxel expected.	20,000 triangles exactly on both, 0 non-manifold edges, no boundary. Thin walls break into crumbs, which a second floater pass removes.	Confirmed	2026-09-17 · glb_pipeline.py
Is a low-sample CPU preview enough to judge a composition before spending GPU time?	Written in advance, in the entry itself: a low-sample preview is enough to judge framing.	6.698 s and 7.025 s at 24 samples; the first framing put pillars across the focal rings and was rejected on sight.	Confirmed for framing, not for final image quality	2026-09-19 · orbital_cathedral.py
What does modelling in bpy buy against image-to-3D, for the same two objects?	Not written in advance as a prediction: the comparison was itself the object of the exercise.	3,370 and 5,950 triangles against 890,140 and 1,017,760; 0 non-manifold edges against 19,084 and 189,748; named parts, materials and animations, for about 510 lines.	Confirmed	2026-09-22 · atlas_check.py
Is occlusion baked per vertex worth its 40 kB in a real-time page?	Written in advance: yes, on the ambient term — which is why that path was measured first.	On the ambient term, 4 to 5 % of pixels move by a mean of 1.2/255 — nothing. On the diffuse term, with the exposure held fixed, the luminance spread grows by 1.44 to 1.95.	Refuted on the ambient term, confirmed on the diffuse one	2026-09-22 · scripts not published
Can a vertex’s distance from the middle tell a figure’s arm from its leg?	Not written in advance as a prediction: the first version of the script assumed it.	A leg’s top reaches 0.170 m from the middle and an arm’s inner edge at the shoulder 0.145 m: they overlap by 0.025 m. The UVs flag the limbs instead.	Refuted	2026-10-04 · crowd_kit.py

2026-09-16 — Versions and setup

• Blender’s LTS page lists 5.2.2 and 4.5.14, both released on 15 September 2026. The course pins 5.2.2, tag v5.2.2, commit d13f752e3b9c4f8c261cda552b1021f8bcc0382c.
• The Windows archive is 404,453,484 bytes, and its SHA-256 matches blender-5.2.2.sha256. It is extracted on a separate drive, and nothing is installed in the system.
• winget still offered 5.2.1 on the day of 5.2.2’s release. The checksum file lists no Intel build for macOS, only macos-arm64.
• The pages of projects.blender.org answer 403 to curl, but its API doesn’t: /api/v1/repos/blender/blender/raw/<path>?ref=<sha> returned the files at the pinned commit. The Python files quoted in the lessons (the glTF exporter, Cycles’ properties) are identical to the ones in the installed build, apart from line endings.
• Lesson 1 order: bpy comes into every lesson from the first one, instead of waiting for lesson 5; the mission explains why.

2026-09-16 — Scripts, CI and what they showed

• The first CI run passed on all three OSes. Each job took about a minute, of which check.sh took 25 to 27 s; the rest is the download (about 350 to 400 MB) and unpacking. The 4096-sample reference render of lesson 4 took 13 to 18 s on the runners, against 1.4 s on the author’s 24-thread CPU.
• The hash of the 16-sample Cycles render, 8-bit after AgX, was the same on Windows and Linux on x86-64 and on macOS on Apple Silicon. check.sh first printed it without comparing; after that run, it compares it.
• The .blend file saved by lesson 1 is 96,061 bytes on the author’s machine and on the Linux runner, 96,053 on the Windows runner and 96,055 on the macOS one: its size isn’t compared.
• The generated rosewood texture was far too dark at first. Image.pixels on an 8-bit sRGB image stores the given values as bytes, without conversion, and the script had converted the color to linear first. Lesson 3 tells the story.
• The glTF exporter dropped a Noise Texture connected to the Roughness without a message in its log, leaving glTF’s default roughness of 1. It doesn’t apply modifiers unless export_apply is set. And export_format="GLTF_EMBEDDED" is refused unless a preference of the add-on enables it, although the manual documents the format.
• In 5.2, reading Material.use_nodes prints a DeprecationWarning: it will be removed in 6.0. RenderSettings.engine’s enum, read from the class, lists only BLENDER_EEVEE, while setting BLENDER_WORKBENCH or CYCLES works.
• The first lights (12, 3 and 15 W) were far too strong for a scene half a meter wide; the lesson uses 3, 0.6 and 4 W.

2026-09-16 — Images

• The renders come from scripts/render_images.py: Cycles on the CPU for the lesson images, and Cycles with OptiX and EEVEE for the timings, run under the machine’s GPU lock since other work shares the GPU.
• The interface screenshot comes from Blender started with a window and a script that selects the cube, moves the pointer out of the way, and calls bpy.ops.screen.screenshot from a timer. With --factory-startup, the Quick Setup splash covered the viewport, so the capture used a separate user configuration folder (BLENDER_USER_CONFIG) whose preferences turn the splash off. Quitting from the script still wrote quit.blend to the system’s temporary folder.

2026-09-17 — Models generated in ComfyUI, cleaned in Blender

The request: real 3D models from ComfyUI, brought into Blender and shown here with what went wrong. The generation is the work of Atlas, another working session of this project, with its script objets.py (not published): it made a metronome and a gramophone with ComfyUI (see the ComfyUI course), in two steps:

1. SDXL base 1.0 drew each object alone on a white background, seen three-quarters from slightly above: 1024 × 1024 px, 30 steps, CFG 6.5, dpmpp_2m with the karras scheduler, seeds 5101 (metronome) and 5110 (gramophone).
2. Hunyuan3D 2.0, with the fp16 weights repackaged by Comfy-Org (hunyuan3d-dit-v2_fp16) and ComfyUI’s native nodes (Comfy’s tutorial), turned each image into a mesh: ImageOnlyCheckpointLoader → CLIPVisionEncode (crop center) → Hunyuan3Dv2Conditioning → EmptyLatentHunyuan3Dv2 (resolution 3072) → KSampler (30 steps, CFG 5, euler/normal, seed 7) → VAEDecodeHunyuan3D (8000 chunks, octree resolution 380) → VoxelToMesh (surface net, threshold 0.6) → SaveGLB. ComfyUI v0.36.0.

The Hunyuan3D 2.0 license doesn’t apply in the European Union, the United Kingdom and South Korea, and its clause 5.c forbids displaying outputs outside that territory. This site can be read there, so neither the models nor renders of them are published here: the findings below are described in words.

The cleanup pipeline was written for this course by L2, the session that writes it. Blender ran scripts/glb_pipeline.py in the background on each file. It merges vertices by distance, removes floating parts, recalculates normals, scales to a real size, decimates, reports the mesh before and after, renders a Cycles turntable, exports a .glb with modifiers applied, and reads it back. CI runs it on a small pick built in bpy, with the flaws of a generated mesh (scripts/pipeline_check.py), with and without a voxel remesh: the reports, remesh included, were identical on the three runners.

What the turntable renders showed. The metronome kept its pyramid, its base and its winding key; the dial, the scale markings and the pendulum of the image came out as relief on the front face, with a rough surface before the remesh and a smoother one after. The gramophone’s horn was full of torn triangles before the remesh and closed after it, and a slab under the cabinet broke into a few fragments.

What the reports said:

	Metronome	Gramophone
Hunyuan3D .glb	15,944,172 bytes	17,421,112 bytes
Vertices, triangles	438,348, 890,140	433,806, 1,017,760
Non-manifold edges	19,084	189,748
Loose parts	86	20
UVs, textures	none, none	none, none
Decimate to 20,000 triangles	882,644 → 43,302, target missed	1,004,809 → 317,253, target missed
Cleaned .glb, without remesh	632,484 bytes	5,835,300 bytes
Voxel remesh, then Decimate	1.2 mm: 223,100 → 20,000	3 mm: 195,848 → 20,000
After remesh: non-manifold edges, loose parts	0, 1	0, 3
Cleaned .glb, with remesh	361,100 bytes	361,000 bytes

• No texture, so no baked lighting. The planned failure, lighting painted into the texture, didn’t happen: this workflow outputs shape only, with one empty material and no UV map. The wood, the brass and the dial of the SDXL images are lost; colors and materials have to be made in Blender.
• Topology. A surface net builds its surface on a voxel grid. Where a wall is thinner than a voxel, like the gramophone’s horn, both sides probably fall on the same edges: the report counted 189,748 non-manifold edges there, against 19,084 on the solid metronome. Decimate in Collapse mode stopped far above its target on both models, and the first version of the pipeline printed only the ratio it had asked for. The report now prints the triangles obtained and says when the target is missed.
• Voxel remesh. The Remesh modifier in Voxel mode rebuilds a closed surface. After it, Decimate reached 20,000 triangles exactly, and both meshes had no boundary and no non-manifold edges. Its cost: detail smaller than the voxel is lost, and thin walls break into crumbs. The pipeline now runs its floater filter a second time after the remesh; it removed 22 crumbs from the metronome and 2 from the gramophone. The two gramophone fragments that remain hold more than 1% of the faces.
• Invented back. The metronome’s back and sides, which the image doesn’t show, came out as flat, plausible faces. The engraved dial, the scale markings and the pendulum of the image became relief on the front face: Hunyuan3D reads painted detail as shape.
• The background. The line where the white floor meets the white wall under the gramophone became a slab under the cabinet. The floater filter kept it, and the remesh only broke it into fragments. The fix belongs before the 3D step, in the cutout of the image.
• Small things. The metronome held one vertex without any face: glTF drops it, so the size read back was smaller than the size written. The pipeline now deletes such vertices. The origin is put back at the bottom after the remesh without scaling again, so the remeshed metronome is 22.98 cm tall instead of 23.
• Time, on the author’s machine. 17 to 29 s per model for the whole pipeline, including import and export; 0.15 to 0.36 s per turntable frame at 512 × 512 px and 32 samples, Cycles on the CPU. The real sizes (23 cm and 60 cm tall) are choices for this test, not measurements.

2026-09-19 — Orbital cathedral: composition before generation

A procedural Blender study reuses the course’s stage.aim and stage.area_light helpers. Hypothesis before rendering: a low-sample CPU preview is sufficient to judge the composition before spending GPU time on ComfyUI.

• Windows, Blender 5.2.2 LTS, Cycles CPU, 8 threads, 24 samples, 1100 × 700 pixels, 314 objects.
• First render: 6.698 s. The oblique camera put foreground pillars across the focal rings; visual inspection rejected that composition.
• Second render: 7.025 s. A centered camera reveals the rings and the processional causeway. Both render processes exited with code 0; the script checks the scene objects and the PNG output.
• Verdict: confirmed for detecting this framing problem, not for final image quality. Total render time: 13.723 s; GPU render time: 0 s.
• Source: code/blender/scripts/orbital_cathedral.py. Local evidence: C:/tmp/blender-comfy-scenes-20260919/orbital-v1/ and orbital-v2/, each with a PNG, editable blend and JSON report. These files are not published.
• The user’s open Blender scene was not modified. The live MCP connection was unavailable; a separate factory-startup process produced the study.
• ComfyUI on port 8188 was unavailable. No ComfyUI inference, paid API or model download occurred. The linked Claude artifact’s source remains unread: this is an original study, not its adaptation.
• Non-fatal warnings: deprecated use_nodes assignments and bundled brush paths that Blender could not make relative. Linux/macOS execution, portability of the blend, materials refinement and the ComfyUI stage remain to verify.

2026-09-22 — Modelling in bpy against image-to-3D

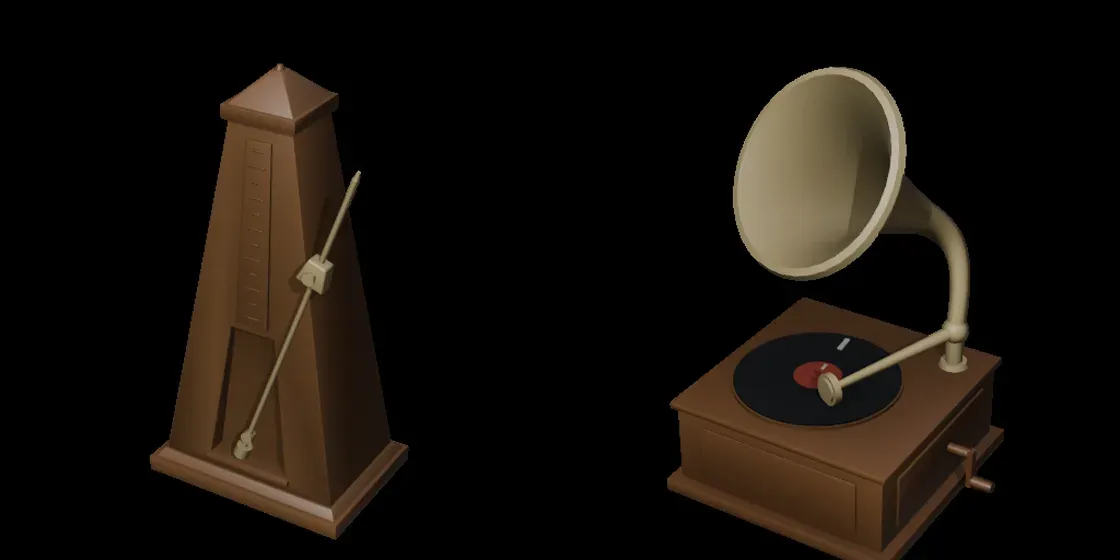

The same two objects, a metronome and a gramophone, were made twice: generated from an SDXL image by Hunyuan3D 2.0 (the entry above), then modelled in bpy. The second way was chosen after reading the Hunyuan3D license, whose clause 5.c forbids displaying its outputs outside a territory that excludes the European Union, the United Kingdom and South Korea — the ComfyUI course tells that side of the story in lesson 8. The scripts were written by an agent of the orchestrator session; they are kept in the course, at scripts/atlas/, because they make the comparison concrete.

	Hunyuan3D 2.0, then cleaned	Modelled in bpy
Metronome: triangles	890,140, then 43,302 after Decimate, 20,000 after a voxel remesh	3,370
Gramophone: triangles	1,017,760, then 317,253, 20,000 after a remesh	5,950
.glb	15.9 MB and 17.4 MB raw; 361 KB each after the remesh	91,176 and 150,944 bytes
Non-manifold edges	19,084 and 189,748	0 and 0
Parts, names	one block, Material_0	corps, tige, poids; caisse, pavillon, disque, etiquette, repere
Animation	none	pendulum ±19.99° in 1.5 s; record 720° in 1.54 s
Materials	none	one Principled color per part
Scale and axes	to be given by hand after the fact	1 unit tall, base on the origin, front towards +Z

• What the code buys. Each part is a named object, so the page that loads the model can give it its own material and animate it. The metronome’s pendulum turns around a pivot, and the gramophone’s record around another; both animations are exported to glTF and loop cleanly. Nothing is left to interpret: the height is exactly 1, the base sits on the origin, the front faces +Z.
• What it costs. About 510 lines of modelling for the two objects, plus 120 for the check, and the model is exactly as detailed as the code says: the scale on the metronome is twelve extruded ticks, not an engraved plate; the wood is a color, not a grain. An image-to-3D model gives a shape in one minute that would take an hour to model, with the defects described in the entry above.
• Reading the file back. scripts/atlas_check.py builds both models, then opens each .glb twice: once as bytes, parsing the JSON chunk to print the node tree, the materials and the animation samplers, and once through the importer, for the triangle counts and the bounding box. The rotation curve is unwrapped key by key, so the report shows the real angles rather than quaternions: 0.000 s: 0.00 deg, 0.367 s: 19.99 deg, 0.750 s: 0.00 deg, and whether the first key equals the last. CI compares the whole report with expected/.
• glTF’s axes. Blender works Z-up with the front towards −Y; the exporter writes Y-up with the front towards +Z. The check prints the bounding box in glTF axes, which is what the consumer of the file sees: x [-0.2495, 0.2495], y [0.0000, 1.0000], z [-0.1747, 0.1747].
• A detail of the exporter. The record’s 720° in 1.54 s are written as 155 keys, not as two keys with a turn count: glTF stores rotations as quaternions, which cannot say “two turns”. A player interpolating between two quaternions takes the short way, so a full turn has to be cut into keys.
• Memory. Blender is only started here when at least 12 GB of memory are free. The night before, a Cycles bake of another scene crashed inside Embree while building its BVH, with 1 GB free on a 64 GB machine.

2026-09-22 — Occlusion baked into vertices, and telling a real effect from a darker one

The question came from another page of this project, the Banc de Placement: a room drawn by a hand-written WebGL2 renderer — a guitar, a desk, a rug, six point lights — where nothing quite sits on anything. Would occlusion baked in Blender and shipped as one byte per vertex be worth its weight in a page? Nothing in that page was changed: the bake, the patched shader and the three measurements below all ran on a local copy.

The bake. A headless capture of the page wrote out its draw calls — 803 draws over 518 meshes — of which 220 never move. Those were rebuilt in Blender and baked with Cycles into a point color attribute, bpy.ops.object.bake(type="AO", target="VERTEX_COLORS"): 21,533 vertices, 25.9 s for the ambient occlusion pass and 24.4 s for the indirect one. One byte per vertex is 21,533 bytes; carried as base64 inside the page’s JSON it is 39,856. A patched copy of the page binds it as a vertex attribute and multiplies one term of its shader by it.

Two figures, three measurements. The same three camera angles each time, and the same two numbers: the percentage of pixels whose Rec.601 luminance moves by more than 4.5/255, and the shift in mean luminance. The three views are called default, low-left and high-right below.

	changed pixels	mean shift	mean luminance	luminance spread
occlusion on the ambient term	4.2, 5.0, 4.4 %	1.23, 1.24, 1.30	−0.4	−0.16, −0.10, −0.07
also on what the six lights diffuse	47.8, 35.6, 52.1 %	6.98, 5.64, 6.84	−6.1	−1.27, −0.18, −0.57
the same, with the exposure put back	58.3, 41.2, 59.7 %	6.84, 6.25, 6.52	0.0	+1.44, +1.82, +1.95

• The first path changes almost nothing. Multiplying only the ambient term by the occlusion moves 4 to 5 % of the pixels by a mean of 1.2 on 255. In that shader the ambient coefficient runs from 0.026 to 0.105 depending on the material, so the term it scales is a small part of the final color: there was little there to take away. 40 kB for that is a bad trade.
• The second looked spectacular, and that was the problem. Multiplying what the six lights diffuse by the occlusion darkens the whole image: the mean luminance falls 6.1 on 255, about 10 % of exposure. A flat 0.9 over the image would also “change 48 % of the pixels”, and would show nothing at all. So the third measurement puts the mean luminance back where it was — one gain in linear light, the way an exposure change works, rather than on the sRGB bytes — and asks the same two questions again.
• The percentage of changed pixels went up, from 47.8 to 58.3 %. Undoing the darkening was supposed to make it collapse. The gain alone pushes nearly every pixel past the threshold, so the figure was measuring exposure in both directions: it could never have answered the question. A percentage of changed pixels means nothing without exposure control — and a figure that rises when the confounder is removed is not a weak measurement, it is the wrong one.
• What answers it is the spread of the luminance. A pure exposure change leaves the standard deviation alone once the gain is undone, and that is exactly what the ambient path does: +0.04, +0.09, +0.11, which is noise. The diffuse path widens it by 1.44, 1.82 and 1.95 while the mean stays fixed — the lit side rises while the hollows fall. That is what local contrast is. The criterion generalizes: to tell whether an effect is real or merely darker, hold the mean and look at the spread.
• The cross-check. The mean shift barely moves when the exposure is put back, 6.98 → 6.84 on the first view: the darkening was not what produced it. Two figures react to the renormalization in opposite ways — one feeds on it, the other ignores it — and both point the same way. That is what makes the verdict hold.
• Verdict: confirmed. Occlusion baked per vertex buys real contact shading here, for about 40 kB, but only on the second path: on the diffuse term, not on the ambient one alone.
• Where it stops, at the same level as the result. Three views of a single scene. And only the 220 static draws are baked: a baked shadow is glued to its geometry, so an object moved over a baked floor neither carries its shadow nor receives one. The technique holds for what does not move, and a reader taking it up should know that before budgeting the bytes.
• Not published. The bake, the patched page and the measurement script live outside the repository and are not published, and the artifact itself was left untouched.

2026-10-04 — A crowd for a game engine, its walk carried in the UVs

The Observatory demo’s palace gardens got a sparse crowd in version 38: about a hundred people walking at once in a web page. Godot draws each kind of figure as one MultiMesh, every person an instance of it, and a vertex shader moves the limbs. That shader sees no skeleton and no part names, only vertices, so the mesh itself has to say, vertex by vertex, what moves and how. scripts/crowd_kit.py builds the four figures from boxes, tapered tubes and squashed spheres, and writes the walk into their UVs.

	Courtier	Lady	Walker	Gardener
Triangles	436	392	380	412
Height	1.736 m	1.745 m	1.736 m	1.790 m
.glb	19,384 bytes	18,480 bytes	17,900 bytes	18,848 bytes
Triangles that swing as legs (with the feet), as arms (with the hands), as hanging cloth	64 under a robe, 80, 48	64 under a robe, 80, 48	64, 80, 20	64, 80, 20

• The UVs as a channel. No texture reads them: the figures are coloured per instance. u is a leg’s swing, + for the left leg and − for the right, its size the stride: 1, or 0.6 under a robe, where the step is shorter. ±2 marks an arm, which swings against the leg on its side. v is how far a robe or a tunic hangs below the waist, 0 at the waist and 1 at the hem, for its sway.
• The first idea, refuted. The arms were first to be told from the legs by a vertex’s distance from the middle. The report shows why that cannot work: a leg’s top reaches 0.170 m from the middle, an arm’s inner edge at the shoulder 0.145 m. They overlap by 0.025 m, so the script flags the arms with ±2 instead.
• glTF flips v. glTF’s v is 1 minus Blender’s, so the script stores 1 − weight and the engine reads the weight. Read back through Blender’s importer, which flips it again, the three materials come back as one mesh, and every flag and weight is unchanged.
• Smooth cloth. Flat-shaded, a twelve-sided robe read as twelve stripes in the game, one of them black in the shade. Skin and cloth are smooth-shaded; shoes and hats stay flat.
• The same files. CI rebuilds the four figures with the other scripts. On the author’s machine, the files it writes are the published ones byte for byte.
• What the file does not hold. No skeleton and no animation: the walk lives in the engine’s shader, which is not in this repository. The faces are bare on purpose, and no costume comes from any film or series.

To verify

• Installing with winget, Snap and Flathub, and the versions they carry.
• The PowerShell download and extraction commands of lesson 1, as written.
• The interface under WSLg.
• EEVEE on a machine without a GPU, and whether EEVEE’s faster later starts come from a shader cache on disk.
• Whether GPU renders with a fixed seed are reproducible, across runs and across GPUs.
