1. The interface, and the .blend file as a database

Code: the lesson’s script, scripts/l01_datablocks.py, its report expected/l01_datablocks.txt, and the runner check.sh.

The version

Section titled “The version”

Blender has two kinds of releases: a regular one every few months, and a long-term support (LTS) release, which keeps getting bug-fix updates long after the next regular releases. On 16 September 2026, the LTS page lists two maintained LTS series, 5.2 and 4.5, both last updated on 15 September 2026, to 5.2.2 and 4.5.14.

The course pins Blender 5.2.2 LTS, commit d13f752e3b9c of the blender-v5.2-release branch. Blender is free software under the GNU General Public License: the license covers the program, not what you make with it.

Installing Blender

Section titled “Installing Blender”

Blender publishes an archive per platform on download.blender.org, with a blender-5.2.2.sha256 file that lists the checksum of each one. An archive needs no installer and changes nothing in the system, so you can keep several versions side by side; that is how this course installs it.

Download blender-5.2.2-windows-x64.zip (404,453,484 bytes), check it, and extract it:

Terminal window
Invoke-WebRequest https://download.blender.org/release/Blender5.2/blender-5.2.2-windows-x64.zip -OutFile blender-5.2.2-windows-x64.zip
(Get-FileHash blender-5.2.2-windows-x64.zip -Algorithm SHA256).Hash.ToLower()
# 3849d17a682cba006075aaa3f3597ecb5c9c30ec31035b2e092c53e40679b535
Expand-Archive blender-5.2.2-windows-x64.zip -DestinationPath G:\learn-lab\blender
G:\learn-lab\blender\blender-5.2.2-windows-x64\blender.exe --version

On the author’s machine, Get-FileHash gave the hash above; the download and extraction commands are to verify as written, since the archive was downloaded and extracted another way. The site also has .msi and .msix installers, and a build for Windows on Arm. winget has the package BlenderFoundation.Blender, but on 16 September 2026 winget show still listed 5.2.1, one version behind: check the version before you rely on it (to verify: installing it with winget).

On the author’s machine:

$ blender --version
Blender 5.2.2 LTS
  build date: 2026-09-15
  build time: 01:37:04
  build commit date: 2026-09-14
  build commit time: 15:14
  build hash: d13f752e3b9c
  build branch: blender-v5.2-release
  build platform: Windows
  build type: Release

The full output goes on with the compiler and linker flags.

Blender without a window

Section titled “Blender without a window”

Blender is an application, but its executable is also a command-line tool. The command-line arguments that matter for this course are:

  • --background (-b): no window. The Python scripts run, then Blender quits.
  • --factory-startup: ignore your preferences and your startup file, and start from the factory scene. Two machines then start from the same state.
  • --python <file> and --python-expr <code>: run a script.
  • --python-exit-code 1: exit with code 1 if the script raises an exception. Without it, Blender prints the traceback and exits with 0, and CI can’t tell.
  • --: everything after it is left to the script, in sys.argv.
$ blender --background --factory-startup --python-expr "import bpy; print([o.name for o in bpy.data.objects])"
['Camera', 'Cube', 'Light']
Blender 5.2.2 LTS (hash d13f752e3b9c built 2026-09-15 01:37:04)


Blender quit

In this run, the script’s output came before Blender’s banner. Every script in this course runs like this, from check.sh:

Terminal window
blender --background --factory-startup --python-exit-code 1 --python scripts/l01_datablocks.py -- out

The interface

Section titled “The interface”

Start Blender without --background. The first time, a Quick Setup dialog asks for the language, theme and keymap; keep the defaults, which the manual and this course use.

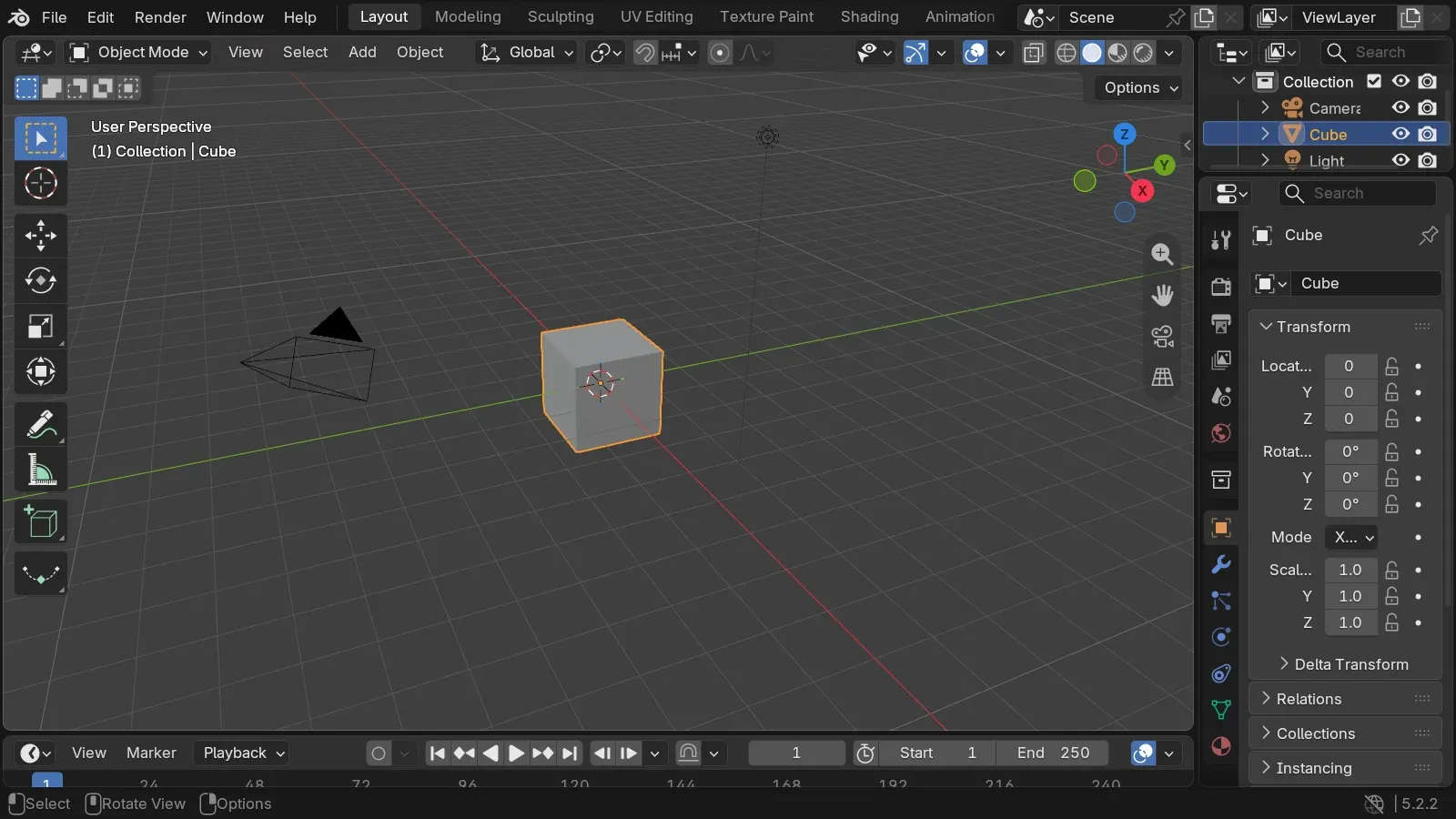

Blender 5.2.2’s Layout workspace with the factory scene: a cube, a camera and a light in the 3D viewport, the outliner and the properties editor on the right, and the timeline at the bottom

The window is divided into areas, and each area shows an editor: the 3D Viewport in the middle, the Outliner at the top right (the scene’s tree), the Properties editor below it, and the Timeline at the bottom. The menu at the top left of each area changes its editor type. The tabs along the top (Layout, Modeling, Sculpting, UV Editing, Shading…) are workspaces: saved arrangements of areas for one task, like an IDE’s perspectives.

A few shortcuts from the default keymap (blender_default.py) cover most of navigation. Shortcuts act on the area under the mouse pointer, not on the area you last clicked:

Action Shortcut
Orbit, pan, zoom the view middle mouse drag, Shift + middle mouse drag, wheel
Frame the selection numpad .
Front, right, top views numpad 1, 3, 7 (Ctrl for the opposite side)
Move, rotate, scale the selection G, R, S, then optionally X, Y or Z to lock an axis
Switch between Object Mode and Edit Mode Tab
Search for any command F3
Maximize the area under the pointer Ctrl + Space
Duplicate, linked duplicate Shift + D, Alt + D

Object Mode works on whole objects; Edit Mode works on the vertices, edges and faces of one mesh (lesson 2). The manual’s navigation page covers the rest, including laptops without a numpad or a middle button.

Two things help a developer. In Edit › Preferences › Interface, turn on Python Tooltips: a field’s tooltip then shows its Python information, such as bpy.data.objects["Cube"].location. And the Scripting workspace has a Python console, next to an Info editor that logs the operators you run.

The .blend file is a database

Section titled “The .blend file is a database”

Save the scene and you get a .blend file. It is not a document with a fixed structure: it is closer to a database, with one table per type of data-block. The manual calls them data-blocks, the Python API calls them IDs, and bpy.data gives access to all the tables. The script prints the ones that aren’t empty in the factory scene:

== What bpy.data holds (non-empty collections)
bpy.data.cameras: ['Camera']
bpy.data.scenes: ['Scene']
bpy.data.objects: ['Camera', 'Cube', 'Light']
bpy.data.materials: ['Dots Stroke', 'Material']
bpy.data.meshes: ['Cube']
bpy.data.lights: ['Light']
bpy.data.screens: ['Animation', 'Compositing', 'Geometry Nodes', 'Layout', 'Modeling', 'Rendering', 'Scripting', 'Sculpting', 'Shading', 'Texture Paint', 'UV Editing']
bpy.data.window_managers: ['WinMan']
bpy.data.images: ['Render Result', 'Viewer Node']
bpy.data.worlds: ['World']
bpy.data.collections: ['Collection']
bpy.data.palettes: ['Palette']
bpy.data.linestyles: ['LineStyle']
bpy.data.workspaces: ['Animation', 'Compositing', 'Geometry Nodes', 'Layout', 'Modeling', 'Rendering', 'Scripting', 'Sculpting', 'Shading', 'Texture Paint', 'UV Editing']

The workspaces and screens are in the list: the interface layout is saved in the file, next to the scene. Dots Stroke is the default material for Grease Pencil, Blender’s 2D drawing objects.

Objects and their data

Section titled “Objects and their data”

An object holds where something is (location, rotation, scale, parent) and points to its data, which holds what it is: a mesh, a camera, a light. The material is a third data-block, which the mesh points to:

== The factory startup scene
scene 'Scene' engine BLENDER_EEVEE frames 1 - 250
collection 'Scene Collection' objects []
  collection 'Collection' objects ['Camera', 'Cube', 'Light']
object 'Camera' type CAMERA data Camera 'Camera' location (7.359, -6.926, 4.958)
object 'Cube' type MESH data Mesh 'Cube' location (0.000, 0.000, 0.000)
object 'Light' type LIGHT data PointLight 'Light' location (4.076, 1.005, 5.904)


== An object points to its data
cube.data is bpy.data.meshes['Cube']: True
mesh 'Cube' vertices 8 edges 12 faces 6 loops 24
material slots [('DATA', 'Material')]
users: object 1 mesh 1 material 1
flowchart LR
  scene[Scene] --> coll[Collection]
  coll --> cube[Object 'Cube']
  cube -->|data| mesh[Mesh 'Cube']
  mesh -->|material slot| mat[Material 'Material']

In C# or Java terms, an object and its mesh are two instances, and the object holds a reference to the mesh. The difference is that Blender counts the references: each data-block has a users count, like a COM object’s reference count or a shared_ptr’s use count.

Linked and full duplicates

Section titled “Linked and full duplicates”

Shift + D duplicates an object and, by default, its mesh. Alt + D makes a linked duplicate: a new object that points to the same mesh. Which data Shift + D copies is a preference (Edit › Preferences › Editing › Duplicate Data): meshes and lights yes, materials no. The script does both by hand:

linked = cube.copy()  # a new object, the same mesh
full = cube.copy()
full.data = mesh.copy()  # a new object and a new mesh
== Linked duplicate (Alt+D) and full duplicate (Shift+D)
after the linked duplicate: objects 4 meshes 1 mesh users 2
after the full duplicate: meshes [('Cube', 2), ('Cube.001', 1)]
the material is shared by both meshes: material users 2

Editing the mesh of a linked duplicate in Edit Mode changes every object that uses it. The course’s fretboard (lesson 2) uses this for its 22 frets: one mesh, 22 objects.

Orphans, fake users, and what saving keeps

Section titled “Orphans, fake users, and what saving keeps”

Removing an object doesn’t remove its mesh. The mesh stays in bpy.data with zero users, an orphan. Blender doesn’t free it while the file is open, but saving skips data-blocks that have no users. To keep a data-block with no users, give it a fake user (the shield icon next to its name), which counts as one user:

== Orphans and fake users
after removing the object 'Full': meshes [('Cube', 2), ('Cube.001', 0)]
a new mesh with a fake user: users 1 use_fake_user True
meshes written to the file: ['Cube', 'Kept']
objects written to the file: ['Camera', 'Cube', 'Light', 'Linked']
orphans_purge: {'FINISHED'} meshes left [('Cube', 2), ('Kept', 1)]

bpy.data.libraries.load opens a .blend file and lists what it contains without loading it: the orphan Cube.001 wasn’t written. File › Clean Up › Purge Unused Data (bpy.ops.outliner.orphans_purge) removes orphans from the open file.

This is a garbage collector that runs when you save, with reference counts instead of reachability. It surprises people who expect a saved file to hold what they see in the outliner’s Blender File view: a material you made and haven’t assigned yet is gone after saving and reopening.

Names

Section titled “Names”

A data-block’s name is its key in its table, so names are unique per type, not across types. Blender adds .001, .002 to resolve a clash. Names are limited to 255 bytes: DNA_ID.h reserves 2 characters for the type code and 256 for the name, with its terminating zero.

== Names are unique per type
D.meshes.new('Cube').name: 'Cube.001'
a material may also be called 'Cube': 'Cube'
a 300-character name is cut to 255 characters

Scripts should keep the object new returns, not look it up again by the name they asked for.

RNA: properties that describe themselves

Section titled “RNA: properties that describe themselves”

Every field you see in the interface is an RNA property, Blender’s reflection layer. The Python API, the interface, animation and drivers all go through it. Each property carries metadata, like a C# PropertyInfo with attributes, or a JavaBeans PropertyDescriptor:

== RNA: properties describe themselves
Object.location: type FLOAT subtype TRANSLATION unit LENGTH array_length 3
default [0.0, 0.0, 0.0]
repr(cube): bpy.data.objects['Cube']
repr(cube.location): Vector((0.0, 0.0, 0.0))
path_from_id('location'): location
path_resolve('location'): Vector((0.0, 0.0, 0.0))
Object has 141 RNA properties; Mesh has 71
an ID's own properties: ['rna_type', 'name', 'name_full', 'id_type', 'session_uid', 'is_evaluated', 'original', 'users']

The subtype TRANSLATION and the unit LENGTH are why the interface shows location as three distances in meters. The repr of a data-block is the Python expression that finds it again, and path_from_id gives the data path of a property from its data-block: lesson 7 animates properties through those paths. The API overview and its gotchas page are worth reading once.

Blender C# or Java
bpy.data.meshes, bpy.data.objects… one table or DbSet per type
data-block (ID) with users a reference-counted object
object → data → material objects holding references to shared instances
orphans skipped when saving garbage collection at serialization time
fake user a GC root
RNA property with subtype and unit PropertyInfo with attributes, PropertyDescriptor

Key takeaways

Section titled “Key takeaways”
  • Blender 5.2.2 LTS installs from an archive checked against blender-5.2.2.sha256; --background --factory-startup --python-exit-code 1 runs a script reproducibly and fails when the script fails.
  • The window is made of areas showing editors; workspaces are saved layouts, and they are stored in the .blend file too.
  • A .blend file is a database of data-blocks, one table per type, with names unique per type.
  • Objects point to data, and data to materials; each data-block counts its users.
  • Saving skips data-blocks with no users, unless they have a fake user.
  • RNA describes every property, and it is what the Python API, the interface and animation share.

Exercises

Section titled “Exercises”
  1. In the factory scene, remove the Cube object, save, and open the file again. Which meshes and materials does the file contain, and with how many users?
  2. Make a linked duplicate of the cube. Which API lists, for the mesh and the material, the data-blocks that use them?
  3. Before running it, predict what blender --background --factory-startup --python-expr "import bpy; bpy.data.objects.remove(bpy.data.objects['Cube']); print(len(bpy.data.meshes))" prints, and why.
Solution 1
== Exercise 1: remove the Cube object, save, and reload
before saving: mesh 'Cube' users 0 | material 'Material' users 1
after reloading: meshes [] | materials [('Material', 0)]

The orphan mesh isn’t written. The material is: when saving, the orphan mesh still counted as one user. After reloading, the mesh is gone, so the material has no users; it will be dropped at the next save.

Solution 2

bpy.data.user_map returns, for each data-block, the set of data-blocks that use it:

users = bpy.data.user_map(subset=[bpy.data.meshes["Cube"], bpy.data.materials["Material"]])
== Exercise 2: who uses a data-block?
bpy.data.meshes['Cube'] is used by ["bpy.data.objects['Cube']", "bpy.data.objects['Twin']"]
bpy.data.materials['Material'] is used by ["bpy.data.meshes['Cube']"]
Solution 3

It prints 1. Removing the object leaves the mesh in bpy.data.meshes, with zero users; only saving, or purging, would drop it.
