2. Polygonal modeling and modifiers

Code: the lesson’s script, scripts/l02_modeling.py, the fretboard model, scripts/fretboard.py, and the report, expected/l02_modeling.txt.

What a mesh is made of

A mesh is a list of vertices (points), edges (pairs of vertices) and faces (closed polygons of three or more vertices). Blender adds a fourth element that tutorials rarely mention: the loop, or face corner. A face with four vertices has four loops, and a vertex shared by three faces belongs to three loops. Everything that can differ from one face to the next at the same vertex is stored per loop: UV coordinates (lesson 3), split normals, vertex colors.

The course’s fretboard starts as a tapered slab of eight vertices and six quads, given to Mesh.from_pydata as Python lists, the way you would fill a vertex buffer and an index buffer:

verts = [
    (0, -w0, -THICKNESS), (length, -w1, -THICKNESS), (length, w1, -THICKNESS), (0, w0, -THICKNESS),
    (0, -w0, 0), (length, -w1, 0), (length, w1, 0), (0, w0, 0),
]
faces = [(0, 3, 2, 1), (4, 5, 6, 7), (0, 1, 5, 4), (1, 2, 6, 5), (2, 3, 7, 6), (3, 0, 4, 7)]
mesh = bpy.data.meshes.new(name)
mesh.from_pydata(verts, [], faces)
mesh.validate()

from_pydata derives the edges from the faces, and validate checks the result for invalid data and fixes what it finds. The report:

== A mesh from vertices and faces (from_pydata)
fretboard slab: V 8 E 12 F 6 loops 24
topology: {'quads': 6} boundary edges 0 non-manifold edges 0 V-E+F 2
face 0 (bottom) vertices [0, 3, 2, 1] normal (0.000, 0.000, -1.000)
face 1 (top) vertices [4, 5, 6, 7] normal (0.000, 0.000, 1.000)
the bottom face wound the other way: normal (0.000, 0.000, 1.000)

The order of a face’s vertices, its winding, sets its normal: seen from the side the normal points to, the vertices go counterclockwise. Wind the bottom face the other way and its normal points into the slab. Renderers and exporters use normals for shading and for back-face culling, so an inside-out face looks black or disappears in three.js. In Edit Mode, Mesh › Normals › Recalculate Outside (Shift + N) turns the selected faces outward.

Topology

Modelers talk about topology: how the elements connect, independently of where the vertices are. The script counts a few properties with bmesh, Blender’s editable mesh structure:

== Open and non-manifold meshes
one quad: V 4 E 4 F 1 {'quads': 1} boundary edges 4 non-manifold edges 4 V-E+F 1
three quads sharing one edge: V 8 E 10 F 3 {'quads': 3} boundary edges 9 non-manifold edges 10 V-E+F 1
the slab triangulated: V 8 E 18 F 12 {'tris': 12} boundary edges 0 non-manifold edges 0 V-E+F 2

• A manifold mesh is one where every edge has exactly two faces: a closed surface, like the slab. A boundary edge has one face, the edge of an open sheet. An edge with three faces, like the spine of a book with three pages, is non-manifold too. 3D printing and boolean operations expect manifold meshes.
• For a closed surface, V − E + F is the Euler characteristic: 2 for anything shaped like a sphere, however it is subdivided, 0 for a torus (exercise 1). It is a cheap check that a generated mesh has no holes.
• Quads are the norm when modeling, because loops of quads subdivide cleanly and edge-loop tools follow them. Triangles are what GPUs draw: the glTF exporter (lesson 3) and the GPU triangulate everything anyway. Faces with more than four sides, n-gons, are fine on flat surfaces and trouble on curved ones.

A Mesh stores flat arrays, compact and fast to read. A BMesh stores the adjacency: each vertex knows its edges, each edge its faces. It is what Edit Mode works on, and what scripts use to change topology. You convert between them with bm.from_mesh(mesh) and bm.to_mesh(mesh), as you would load an immutable array into a graph structure, edit it, and write it back.

Edit Mode

Select the cube, press Tab, and you are in Edit Mode, where you work on vertices (1), edges (2) or faces (3). The tools a beginner uses most, with their default shortcuts:

Tool	Shortcut	What it does
Extrude	E	pulls the selection out, with new faces along its sides
Inset	I	makes a smaller face inside each selected face
Loop cut	Ctrl + R	adds an edge loop across a strip of quads
Bevel	Ctrl + B	replaces sharp edges with a strip of faces
Knife	K	cuts new edges across faces

These tools change the mesh itself. A model built only with them is a sequence of edits whose history is lost after you save: going back to change the bevel width means undoing everything after it.

The modifier stack

A modifier is an operation on an object’s geometry that is not applied to the mesh: the mesh stays as it is, and Blender computes the result each time something changes. The modifiers of an object form a stack, run from top to bottom, each one taking the previous one’s output. For a C# or Java developer, it is a chain of decorators around the mesh, or a LINQ or Stream pipeline, evaluated by a dependency graph when an input changes.

The script adds a Bevel then a Subdivision Surface to a cube, and asks the dependency graph for the evaluated mesh:

def evaluated(obj):
    depsgraph = bpy.context.evaluated_depsgraph_get()
    eval_obj = obj.evaluated_get(depsgraph)
    text = counts(eval_obj.to_mesh())
    eval_obj.to_mesh_clear()
    return text

== The modifier stack is evaluated; the mesh stays as it is
stack ['Bevel', 'Subdivision']
cube.data: V 8 E 12 F 6 | evaluated: V 866 E 1728 F 864
stack ['Subdivision', 'Bevel'] | evaluated: V 98 E 192 F 96
Subdivision hidden in the viewport | evaluated: V 56 E 108 F 54
Bevel applied: stack ['Subdivision'] | cube.data: V 56 E 108 F 54 | evaluated: V 866 E 1728 F 864

• cube.data keeps its 8 vertices, whatever the stack does. What the viewport draws and the renderer renders is the evaluated mesh, which Depsgraph computes. to_mesh gives a temporary copy, which to_mesh_clear frees. The glTF exporter is the exception: it writes the mesh without its modifiers unless you turn on Apply Modifiers (export_apply, off by default).
• The order matters. Bevel first rounds the cube’s 12 edges, then subdivision smooths a mesh with bevels: a rounded cube. Subdivision first turns the cube into a near-sphere of 96 quads, then the bevel does nothing: its default limit method only bevels edges whose faces meet at more than 30°, and there are none left. The image shows both.
• Each modifier can be hidden in the viewport or in renders without being removed.
• Apply writes a modifier’s result into the mesh and removes it from the stack: the bevel’s 56 vertices are now real vertices of cube.data. It is the only step that isn’t reversible.

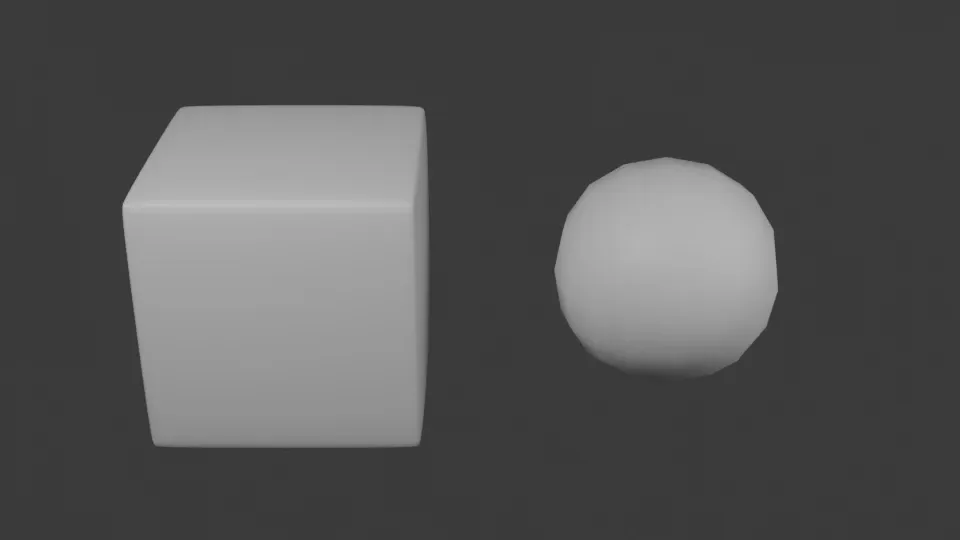

The image was rendered by scripts/render_images.py with Cycles, with smooth shading on both objects. Smooth shading only changes the normals used for lighting, not the geometry: the sphere’s silhouette still shows its facets.

Mirror and Array

Two modifiers do the work of copying geometry. Mirror reflects the mesh across the object’s origin, so you model half of something symmetric. Array repeats it with an offset, relative to the object’s size or constant:

== Mirror and Array
a cube whose center is 1 m from the origin, mirrored in X, then 5 copies in Y: V 80 E 120 F 60
copies that touch, with Merge on: V 48 E 88 F 52
local bounds: evaluated (-1.50, -0.50, -0.50) (0.50, 4.50, 0.50) | cube.data (0.50, -0.50, -0.50) (1.50, 0.50, 0.50)

The mirror works across the object’s origin, not the mesh’s center: moving the mesh 1 m away from the origin is what makes the two halves separate. With touching copies and Merge on, the Array modifier welds the vertices where copies meet: 8 contacts, 4 vertices and 4 edges each, 32 fewer of both, and the two faces pressed together at each contact become one, 8 fewer faces. That face stays, inside the solid. The evaluated bounds span −1.5 to 1.5 in X, while the mesh itself spans 0.5 to 1.5.

The course’s fretboard

fretboard.py builds the model the next lessons light, texture, render and export:

• the board, the slab above, 476 mm long, 43 mm wide at the nut and 56 mm at the last fret;
• 22 fret wires: one cube mesh, and 22 objects, each with its own location and scale, parented to the board;
• 10 inlay dots at frets 3, 5, 7, 9, 12 (two), 15, 17, 19 and 21, sharing one cylinder mesh.

Equal temperament puts fret n at scale × (1 − 2^−n/12) from the nut, so each gap is 2^1/12 times shorter than the previous one. An Array modifier can only repeat a constant or relative offset, so it can’t place frets. A loop can:

for n in range(1, FRETS + 1):
    x = fret_x(n)
    obj = bpy.data.objects.new(f"Fret {n:02d}", wire)
    obj.location = (x, 0, FRET_WIRE_HEIGHT / 2)
    obj.scale = (FRET_WIRE_WIDTH, width_at(x), FRET_WIRE_HEIGHT)
    obj.parent = board
    coll.objects.link(obj)

== The course's fretboard
mesh 'Fret wire': V 8 E 12 F 6, 22 objects: Fret 01 to Fret 22
mesh 'Fretboard': V 8 E 12 F 6, 1 objects: Fretboard to Fretboard
mesh 'Inlay dot': V 48 E 72 F 26, 10 objects: Inlay 03 to Inlay 21
Fret 01: x 36.37 mm, length 44.01 mm
Fret 12: x 324.00 mm, length 52.04 mm
Fret 22: x 466.16 mm, length 56.00 mm
objects 33 | vertices stored 64 | vertices drawn 664
world bounds in mm (0.0, -28.1, -6.0) (476.2, 28.1, 1.2)

The 12th fret is at 324 mm, half the scale: the octave. The linked duplicates from lesson 1 pay off here: 64 vertices are stored for 664 drawn, and changing the wire’s profile means changing one mesh. Before reading the world bounds, the script calls bpy.context.view_layer.update(): objects created from Python get their world matrix, which includes the parent’s transform, only when the view layer is next evaluated.

Key takeaways

• A mesh is vertices, edges, faces and loops; data that can differ per face at a vertex, such as UVs, lives on loops.
• A face’s winding sets its normal; a closed mesh has every edge on two faces, and V − E + F = 2 when it is shaped like a sphere.
• Mesh stores flat arrays; bmesh stores adjacency and is what you edit topology with.
• Modifiers form a stack evaluated by the dependency graph; the mesh stays unchanged until you apply one, and the order of the stack changes the result.
• Read the evaluated mesh with evaluated_get(depsgraph).to_mesh(), and free it with to_mesh_clear().
• Some shapes follow a rule that no modifier knows, like frets; a script places them in a loop.

Exercises

1. Add a torus with bpy.ops.mesh.primitive_torus_add(major_segments=48, minor_segments=12). Predict its vertex, edge and face counts and its V − E + F, then check.
2. Put Subdivision before Bevel, as in the lesson, and find the Bevel setting that makes it bevel the subdivided cube. How many vertices does the result have?
3. Check from fretboard.fret_x that the ratio between two consecutive fret gaps is the same all along the neck, and compare it with 2^1/12.

Solution 1

== Exercise 1: the Euler characteristic of a torus
torus: V 576 E 1152 F 576 {'quads': 576} boundary edges 0 non-manifold edges 0 V-E+F 0

48 × 12 = 576 quads and as many vertices, since each vertex starts one quad. Each quad has 4 edges shared by 2 faces: 576 × 4 / 2 = 1152 edges. The surface is closed and manifold, and V − E + F = 0, the value for a torus.

Solution 2

The bevel’s Limit Method (limit_method) defaults to ANGLE, with 30°. Set it to NONE and every edge is beveled:

== Exercise 2: Subdivision then Bevel, without the angle limit
limit_method ANGLE angle 30.0 | evaluated: V 98 E 192 F 96
limit_method NONE | evaluated: V 866 E 1728 F 864

The counts happen to match the other order, but the shapes differ: a sphere-like mesh with a narrow bevel on each of its edges, not a rounded cube.

Solution 3

gaps = [fretboard.fret_x(n + 1) - fretboard.fret_x(n) for n in range(fretboard.FRETS)]

== Exercise 3: the spacing of frets
gap nut-1 36.369 mm | gap 21-22 10.813 mm | gap n / gap n+1 ['1.059463'] | 2 ** (1/12) 1.059463

All 21 ratios round to the same six decimals, 1.059463, which is 2^1/12. The gap shrinks by that factor at each fret, which is why an Array modifier’s constant offset can’t do it.

Sources

• Blender 5.2 manual: mesh structure, modifiers, Bevel, Subdivision Surface, Mirror, Array, Extrude Region, Bevel tool.
• Blender 5.2 Python API: Mesh, bmesh, Depsgraph, BevelModifier.
• Blender source at 5.2.2: blender_default.py, the default keymap.
